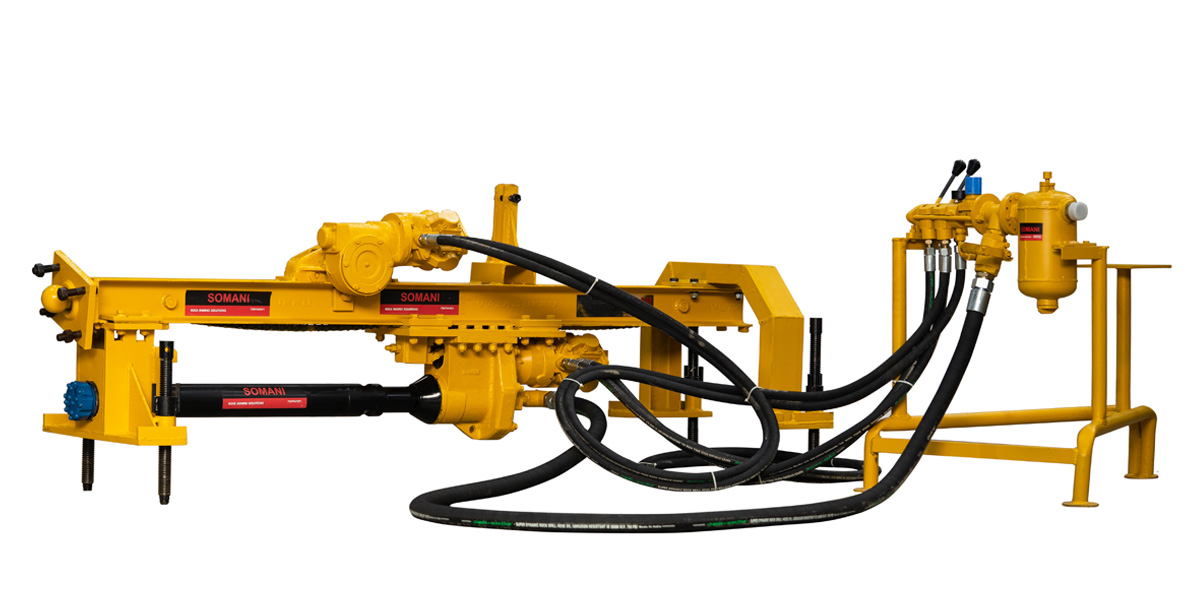

LD-4 Machine
We are engaged in manufacturing& supplying a wide range of LD4 Machine to our clients. This machine is used for drilling in quarry. It can drill both vertical & horizontal. These LD4 machines are widely appreciated by our clients who are situated all round the world.
At Somani Industries, we take pride in offering tailored solutions to meet the diverse needs of quarry operators worldwide. Our range of rock drill machines includes two exceptional models: the Oil Type LD4 and the Grease Type LD4, with both models constructed and designed for optimal performance and durability for their respective application.
Introducing the Oil Type LD4 and Grease Type LD4 Models

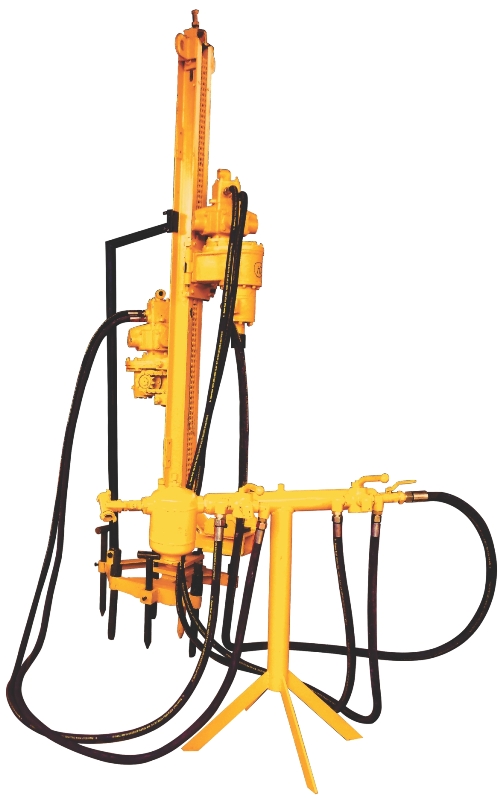

Oil Type LD4: Lightweight and Agile
TECHNICAL DETAILS:
| HOLE DIAMETER | 3 INCHES – 7 INCHES (75MM -177MM) |
|---|---|
| VERTICAL DRILLING DEPTH | 30 METERS |
| HORIZONTAL DRILLING DEPTH | 20 METERS |
| DRILL PIPE DIAMETER | 76 MM/62MM |
| DRILL PIPE LENGTH | 1.5 METERS (4 FEET)(CAN BE CUSTOMIZED) |
| PNEUMATIC MOTOR POWER | 4.5 HP/6 HP |
| MINIMUM REQUIRED PRESSURE | 7 BAR- 10 BAR |
| APPROX WEIGHT | 600 KG |
| CHASSIS | 4 INCH/5 INCH |
Specifications:
- The Oil Type LD4 model is built on a sturdy 4" chassis, combining lightweight design with agile performance for various quarrying applications.
- Capable of drilling 4.5" diameter holes to a depth of 25 meters, both vertically and horizontally, this model offers versatility and maneuverability to tackle a wide range of drilling tasks with ease.
Grease Type LD4: Rigid and Efficient
Specifications:
- The Grease Type LD4 model is constructed on a robust 5" chassis, renowned for its rigidity and drilling efficiency, designed to excel in demanding quarry operations.
- With the ability to drill 4.5" diameter holes to a depth of 25 meters, both vertically and horizontally, this model delivers superior stability, precision, and drilling speed, ensuring maximum productivity and performance
- It provides up to 30% faster drilling than the Oil Type LD4 and has far less lubricating oil consumption compared to oil type LD4 saving significant time and money.
TECHNICAL DETAILS:
| HOLE DIAMETER | 3 INCHES – 7 INCHES (75MM -177MM) |
|---|---|
| VERTICAL DRILLING DEPTH | 30 METERS |
| HORIZONTAL DRILLING DEPTH | 20 METERS |
| DRILL PIPE DIAMETER | 76 MM/62MM |
| DRILL PIPE LENGTH | 1.5 METERS (4 FEET)(CAN BE CUSTOMIZED) |
| PNEUMATIC MOTOR POWER | 4.5 HP |
| MINIMUM REQUIRED PRESSURE | 7 BAR |
| APPROX WEIGHT | 700 KG |
| CHASSIS | 5 INCH |
Highlighting Construction Excellence
Both models are not just distinguished by their drilling capabilities but are also engineered on robust chassis meticulously designed to ensure optimal performance and durability. What sets our machines apart is that they are manufactured entirely in-house using state-of-the-art automated CNC machines.
Choosing the Right Model for Your Needs
Whether you prioritize agility and versatility or require maximum rigidity and efficiency, Somani Industries offers the perfect rock drill machine to meet your specific requirements. Both the Oil Type LD4 and Grease Type LD4 models are engineered to deliver exceptional performance and reliability, ensuring optimal results in your quarrying operations.
Experience Unrivaled Performance with Somani Industries Rock Drill Machines
With our commitment to excellence and innovation, Somani Industries continues to be a trusted partner for quarry operators seeking superior rock drilling solutions. Our Oil Type LD4 and Grease Type LD4 models redefine industry standards, delivering unmatched performance, versatility, and efficiency to drive success in stone quarrying operations worldwide.
